SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS

$129.46

Original: $369.90

-65%
SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS—

$369.90

$129.46

The Story

  • Number of injectors: 4
  • Fuel rail: Anodized billet aluminum (black)
  • Fuel rail connections: 3/8'' NPT
  • Throttle body: VW MI (part number 026133064B) Check technical drawing.
  • TBI position: rear
  • Max working capacity: 10bar (145psi)
  • Internal volume: 2.32L
  • Material: Cast aluminum
  • Application: VW 8V engine (reverse flow cylinder head)

ATTENTION: changes may be required to install this intake manifold.

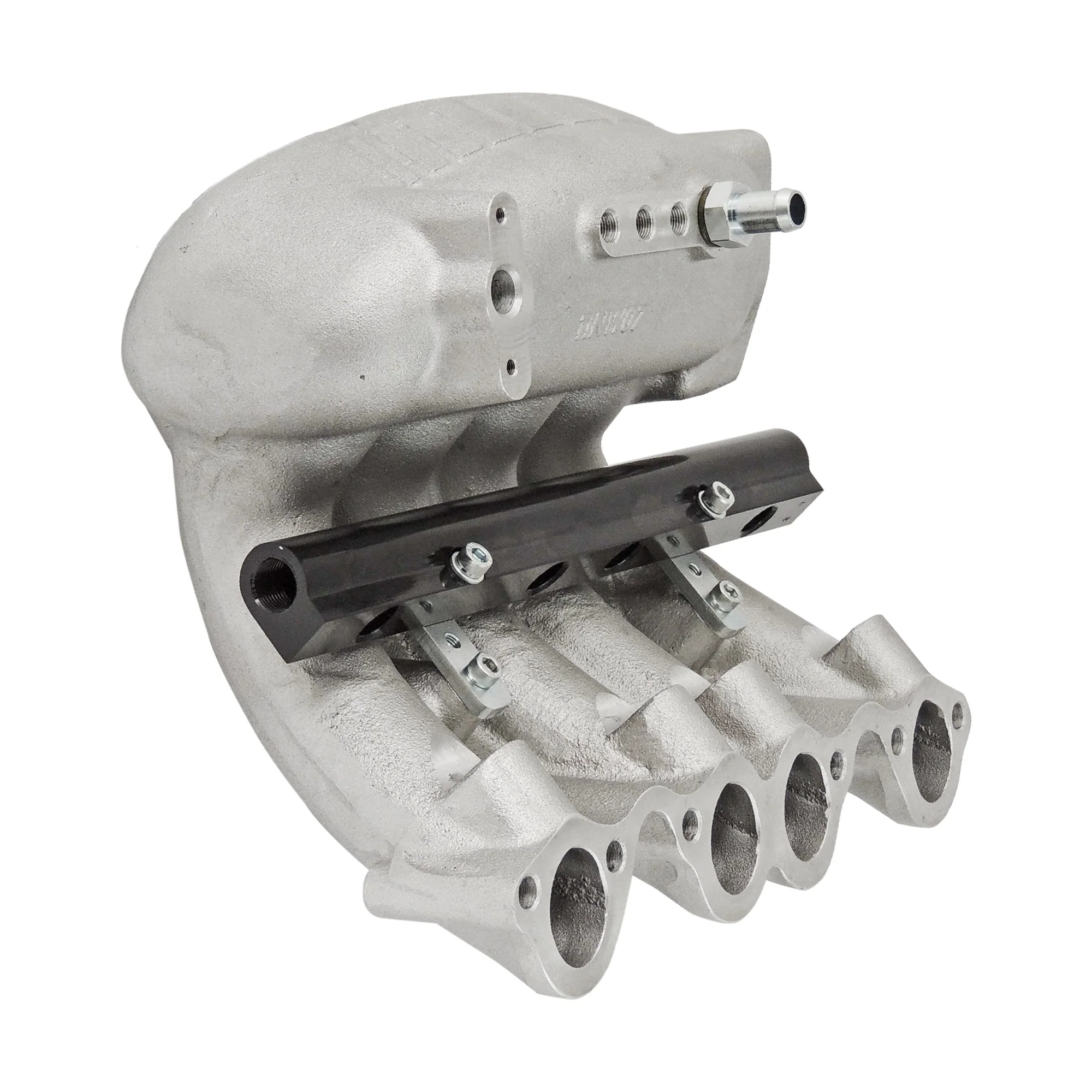

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

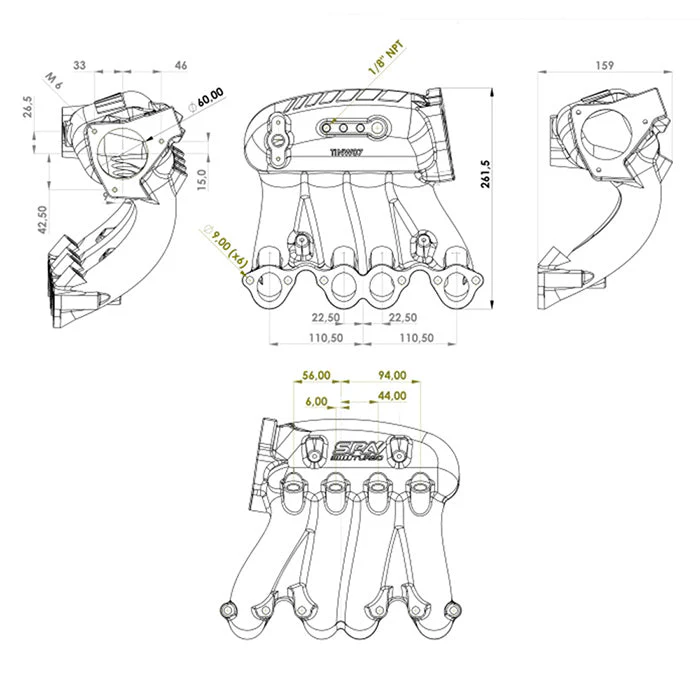

SPA TURBO INTAKE MANIFOLD VW 8V LONGITUDINAL - 4 INJECTORS - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

  • Number of injectors: 4
  • Fuel rail: Anodized billet aluminum (black)
  • Fuel rail connections: 3/8'' NPT
  • Throttle body: VW MI (part number 026133064B) Check technical drawing.
  • TBI position: rear
  • Max working capacity: 10bar (145psi)
  • Internal volume: 2.32L
  • Material: Cast aluminum
  • Application: VW 8V engine (reverse flow cylinder head)

ATTENTION: changes may be required to install this intake manifold.
